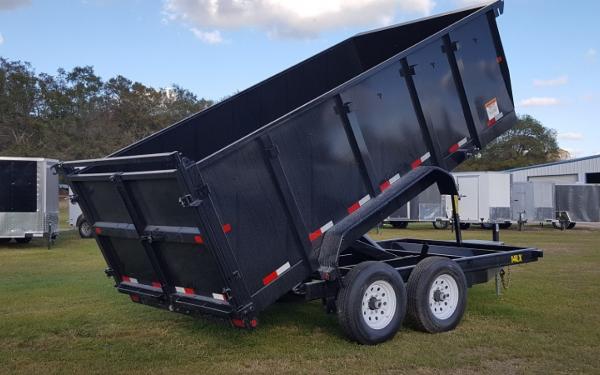

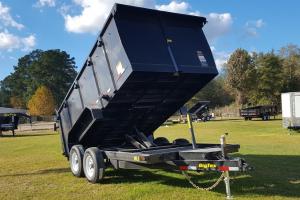

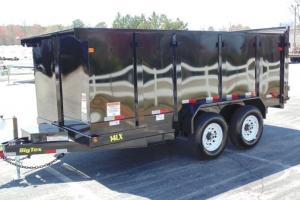

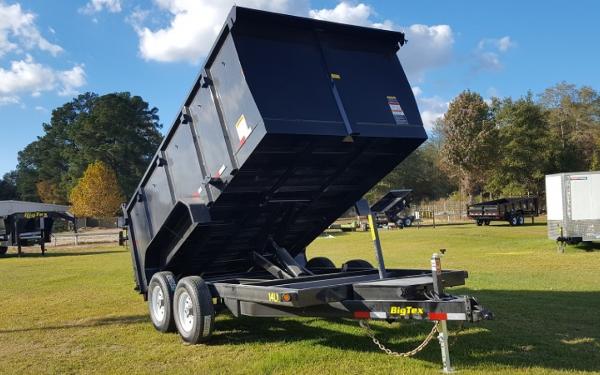

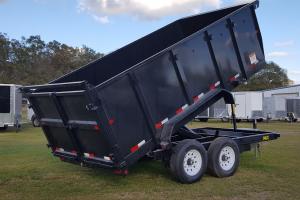

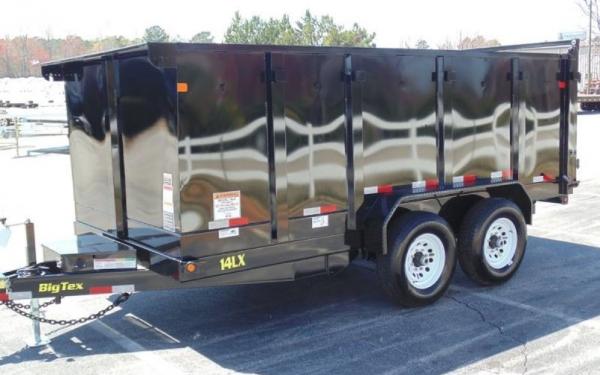

Big Tex 14LX- 14 Heavy Duty Tandem Axle Extra Wide Dump

VIN: 042269

Call for Quote

(803) 438-7317

Lugoff, SC

The 14LX Tandem Axle Low Profile Extra Wide Dump Trailer from Big Tex is the industry leader in its class across the country. This unit combines a tube frame and heavy duty cross members in addition to the most complete box unit, providing durability you can count on.

  • Overview
  • Features/Specifications
  • Standard/Optional Equipment
  • Financing

Overview

Big Tex 14LX- 14 Heavy Duty Tandem Axle Extra Wide Dump

Big Tex 14 LX #1 Best Selling Dump Trailer


Structural Details:

•6'' x 3'' Tube Frame

•2'' x 2'' Tubing Bed Crossmembers on 14" Spacing

•Tubing Top Rail

•6'' Channel Fold Back, Full Wrap Tongue

•10 Ga. Floor

•24'', 12 Ga. Sides w/Formed Channel Supports

•Extra Wide for Increased Payload Capacity

•3-Way Combo Gate

•Diamond Plate Fenders

•3 Year Structural Warranty


Where the Rubber Meets the Road:

•Premium Dexter EZ Lube Cambered 7,000# Axles

•NEV-R-ADJUST Electric Brakes On All Four Hubs

•ST 235/80 R16 Radial Tires

•Complete Break-A-Way System w/Charge Line


More Standard Features:

•Crank Style Tarp and Tarp Shroud Included

•Fully Self Contained Electric/Hydraulic Scissor Lift (For Even Lifting)

•Power Up/Power Down Hoist

•45 Degree Dump Angle

•Recessed Lockable Pump & Battery Box Mounted in Front of Bed

•Interstate Battery

•110V / 5A Onboard Battery Charger w/ Overcharge Protection

•3 Position Adj. Cast Coupler or Pintle Ring

•Sealed Modular Wiring Harness

•All Grommet Mount Sealed LED Lighting and Reflective Conspicuity Tape

•4-5/8'' D-Rings Inside Bed

•Side Stake Pockets On Each Upright

•J-Hooks for Tie Downs

•Spare Tire Mount

•Safety Chains Attached w/Cold Rolled Eyelets

•Acid Etched Prep

•Automotive Grade Highly Decorative and Protective Finish


Optional Add-Ons:

•3' or 4' Solid Sheet Metal Sides

•Solar Charger

•Wireless Dump Remote

•24'' Expanded Metal or Smooth Steel "Modular" Side Extensions

•Jack Upgrade (From 7k to 12k)


*Additional options may be available, contact store for details.

*Photo used for illustrative purposes and may not be an exact representation of actual trailer on lot.

Availability:
In Stock
Axle Config:
Tandem
Max Payload:
9440 lbs.
External Width:
83"
External Length:
14'
Weight:
4560
Hitch Type:
Bumper Pull
Category:
Dump Trailers
Year:
2018
Condition:
New
Material:
Steel
Open/Enclosed:
Open
Rear Type:
Combo Gate
Warranty:
Factory Warranty Included
Color:
Black
GVWR:
14000
Capacity:
9440

Features/Specifications

Features

Axle (2) 7,000# EZ Lube w/Elec. Brakes
Jack 8,000# Top Wind Drop Leg (Bolted On)
Tire ST235/80 R-16 Load Range E
Floor 10 Gauge Smooth Steel
Frame 6" x 3" Rectangular Tubing
Wheel 16" x 6"; HD Black Mod 8 Bolt
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Tongue 6" Channel Fold Back/Wrap
Coupler Adjustable 2-5/16" 18,000# Demco EZ Latch
Fenders 9" x 72" 14Ga. Diamond Plate Double Square Broke
G.V.W.R. 14,000#
Elec. Plug 7-Way RV
Hitch Type Bumper Pull
Suspension Multi-Leaf Spring w/Equalizer
Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
Safety Chains 3/8" Grd. 70 w/Safety Latch Hook (2 each)
Dump Body Sides 24" Tall Sides (12 Gauge)
Bed Crossmembers 3" Channel, 16" Centers
Dump Body Top Rail 2" x 2" Square Tubing
G.A.W.R. (Ea. Axle) 7,000#

Specifications

Heavy Duty Tandem Axle Extra Wide Dump Trailer

Big Tex 14LX Heavy Duty Tandem Axle Extra Wide Dump Trailer

Model Description
14LX-12 83" x 12' Heavy Duty Tandem Axle Extra Wide Dump
14LX-14 83" x 14' Heavy Duty Tandem Axle Extra Wide Dump
14LX-16 83" x 16' Heavy Duty Tandem Axle Extra Wide Dump

Trailer Weights & Capacities

Length Empty Weight Payload Box Capacity
12' 3,570# 10,430# 6.2 Cubic Yards
14' 3,960# 10,040# 7.2 Cubic Yards
16' 4,250# 9,750# 8.3 Cubic Yards

Standard/Optional Equipment

Standard Equipment

  • Adjustable 2-5/16" 18,000# Demco EZ Latch
  • 8,000# Top Wind Drop Leg Jack
  • Lockable Pump & Battery Box Mounted in Front of Bed
  • 24" Tall, 12 Gauge Sides w/Formed Channel Supports
  • 10 Gauge Steel Floor
  • Fully formed Tarp Shroud on Front
  • Crank Style Roll Tarp- Standard Equipped
  • Tarp Rod Included to Secure Tarp on Rear
  • J-Hooks on Sides & Rear for Tarp Control
  • Stakepockets Along Sides
  • Self Contained Electric/Hydraulic Scissor Hoist
  • Power Up/Power Down Hydraulic Pump
  • 12V Interstate Deep Cycle Battery
  • 110V On-Board Battery Charger
  • Dexter Brand Axles
  • Cambered Axles w/EZ Lube Hubs
  • Nev-R0Adjust Electric Brakes on All Hubs
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed, Modular Wiring harness
  • Complete Break-A-Way System
  • Zip Breakaway Bacle
  • Diamond Plate Fenders
  • 2" Square Tubing Top Rail on Dump Bed
  • Combo Gate (Barn Doors & Spreader Gate)
  • (4) 1/2" D-Rings Inside Bed to Secure Equipment
  • Spare Tire Mount
  • Radial Tires

Optional Equipment

Category Description
BODY 24" Expanded Metal Side Extensions
BODY 3 Solid Sheet Metal Sides
BODY 4 Solid Sheet Metal Sides
BRAKES Hydraulic Surge Brakes on Both Axles
COUPLER Adjustable Pintle in Channel ILO Coupler
JACK 12,000# Top Wind Drop Leg Jack
JACK 7,000# Elec/Hyd. Jack by Stillwell
POWER 5 Watt Solar Charger
POWER Wireless Remote
RAMPS 7 Slide In Ramp Package
TIRE/WHEEL Spare Tire (ST235/80 R-16 LR-E)
TIRE/WHEEL Spare Tire Upgrade (ST235/85 R-16 LR-G)
TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G)
