Big Tex 10TL-20 (16 + 4) Pro Series Tilt Bed Equipment Trailer

VIN: 026489

Call for Quote

(803) 438-7317

Lugoff, SC

The 10TL from Big Tex is a stationary platform tilt-deck trailer with a 4-foot stationary deck on the front. This unit, similar to the 10FT, is designed with durability to haul medium-duty, low-profile equipment.

  • Overview
  • Features/Specifications
  • Standard/Optional Equipment
  • Financing

Overview

Big Tex 10TL-20 (16 + 4) Pro Series Tilt Bed Equipment Trailer

Big Tex 10TL Pro Series Tilt Bed Equipment


The 10TL is a stationary platform tilt deck trailer that has a 4' stationary deck on the front and is designed to haul medium duty, low profile equipment.


Structural Details:

* Beefy 6'' Channel Frame

* 3'' Channel, 3'' Sq. Tube Crossmembers

* 5'' Channel Fold Back Tongue

* 2'' Tubular Stop Rail

* Stationary Front Deck

* Hydraulic Dampening System

* 75'' Wide Tilt Platform

* 1/4" Diamond Plate Knife Edge on Rear

* Teardrop Fenders (Removable)

* Rubrail & Tie Down Pockets

* 3-Year Structural Warranty


Where the Rubber Meets the Road:

* Premium Dexter EZ-Lube Cambered 5,200# Axles

* Nev-R-Adjust Electric Brakes On All Four Hubs

* ST 225/75 R15 Radial Tires

* Complete Break-A-Way System w/Charger


More Standard Features:

* 5-Position Adjustable Coupler

* 7k Drop Leg Jack w/ Sand Foot

* Sealed Modular Wiring Harness

* All Grommet Mount Sealed LED Lighting and Reflective Conspicuity Tape

* Spare Tire Mount

* 2'' Treated Pine or Douglas Fir Wood Floors

* Safety Chains Attached w/Cold Rolled Eyelets

* Automotive Grade Highly Decorative and Protective Finish


Available Lengths:

* 20'



Optional Add-Ons:

* Diamond Plate Floor

* 12k Jack Upgrade

* Pintle Ring

* D-Rings

* Spare Tire

* Tire Upgrade


*Additional options may be available, contact store for details.

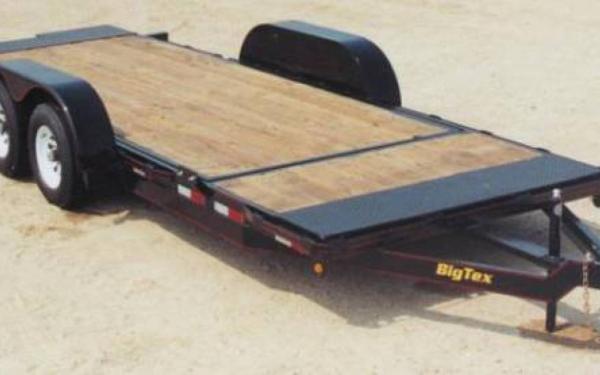

*Photo used for illustrative purposes and may not be an exact representation of actual trailer on lot.


Availability:
In Stock
Axle Config:
Tandem
Max Payload:
6840 lbs.
External Width:
83"
External Length:
20'
Weight:
3150
Hitch Type:
Bumper Pull
Category:
Equipment Trailers
Year:
2018
Condition:
New
Material:
Steel
Open/Enclosed:
Open
Warranty:
Factory Warranty Included
Color:
Black
GVWR:
9990
Capacity:
6840

Features/Specifications

Features

AXLE (2) 5,200# , 4" Drop EZ Lube w/Electric Brakes
JACK 8,000# Drop Leg
TIRE ST225/75 R-15 Load Range D
FLOOR 2" Treated Pine or Douglas Fir*
FRAME 6" Channel
WHEEL 15" x 6"; Black Mod 6 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LiGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE 5" Channel Fold Back/Wrap
COUPLER Adjustable Forged 2-5/16"
FENDERS 9" x 72" Teardrop w/Back (Bolted On)
G.V.W.R. 9,990#
TOP RAIL 3/16" Fabricated Front Stop Rail
UPRIGHTS NONE
ELEC. PLUG 7-Way RV
HITCH TYPE Bumper Pull
SUSPENSION Multi-Leaf Spring with Equalizer
CROSSMEMBERS 3" Channel, 3" Sq. Tube
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 1/4" Grd. 70 w/Safety Latch Hook (2 ea)
G.A.W.R. (Ea. Axle) 5,080#

Specifications

Pro Series Tilt Bed Equipment Trailer

Big Tex 10TL Pro Series Tilt Bed Equipment Trailer

Model Description
10TL-20 83" x 20' (16' + 4') Pro Series Tilt Bed Equipment Trailer

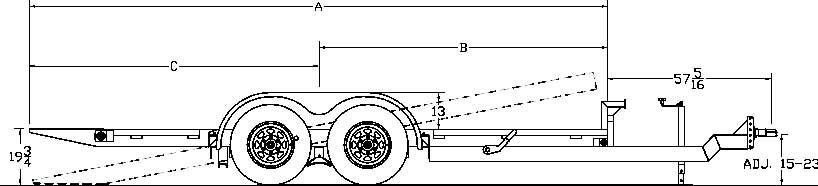

Dimensions

Length A B C
20' 249-1/2" 130-1/2" 119"

Trailer Weights & Capacities

Length Empty Weight Payload Box Capacity
20' 3,150# 6,840# N/A

Standard/Optional Equipment

Standard Equipment

  • Rubrail and Stake Pockets Along Sides
  • Forged Adjustable 2-5/16" Coupler
  • Fold Back/Wrap Tongue w/ Raised Coupler
  • Set-Back, 8,000# Drop Leg Jack
  • Fabricated Front Stop Rail
  • EZ Lube Hubs
  • Dexter Brand Axles
  • Nev-R-Adjust Electric Brakes on All Hubs
  • Cambered 4" Drop Axles
  • Complete Break-A-Way System w/Charger
  • Removable Tear Drop Style Fenders
  • Stationary Front Deck for Added Versatility
  • Unique Two Piece Main Frame
  • 102" Wide Overall, 83" Width Between Fenders
  • Tilt Platform is 75" Wide
  • Hydraulic Dampening System
  • 1/4" Diamond Plate Knife Edge on Rear
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed Modular Wiring Harness
  • Spare Tire Mount (Front)
  • Radial Tires

Optional Equipment

Category Description
BODY 1/8" Diamond Plate Steel Floor
BODY Blackwood Rubber Infused Floor
BRAKES Hydraulic Surge Brakes on Both Axles w/Adjustable Demco Actuator
CARGO CONTROL B40 5/8" D-Ring
CARGO CONTROL Recessed D-Ring in Floor (Steel Floor Only)
COUPLER Adjustable Pintle in Channel in Lieu of Coupler
JACK 12,000# Drop Leg Jack - Side Wind Against Bed
JACK 12,000# Drop Leg Jack - Top Wind
TIRE/WHEEL Spare Tire (ST225/75 R-15 LR-D)
TIRE/WHEEL Spare Tire Upgrade (ST235/80 R-16 LR-E) Special Order (Raises Fenders)
TIRE/WHEEL Tire Upgrade (ST235/80 R-16 LR-E) Special Order (Raises Fenders)
